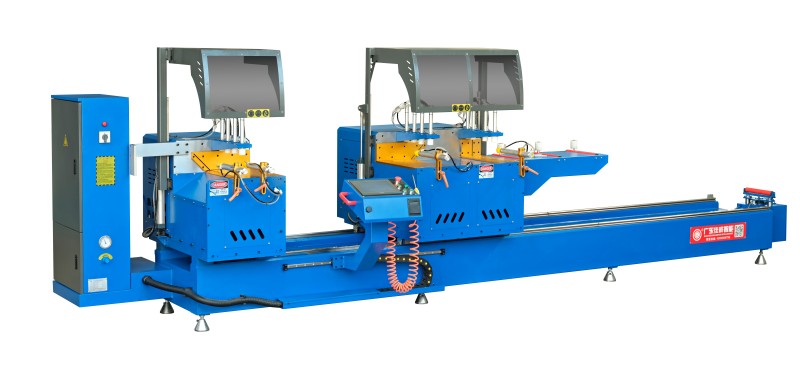

This equipment is a CNC multi-purpose three head saw mainly used for precision and efficient sawing of profiles such as ultra wide pass covers, integrated covers, window covers, multiple light opening door frames, and left and right upper covers. Cutting width reaches 450mm; Automatic calculation of outer frame material height system; The cutting surface is smooth and without burrs; Stable body; High precision spindle directly connected to saw blade rotation; The system adopts Jiangsu; Xinjie PLC; High precision rack and pinion transmission; The CNC system is mature and simple; Batch processing with USB import function; Convenient and practical without any size errors; More convenient operation.
Main equipment configuration and technical parameters

Heavy body weight
Base HT200 cast iron
Guide rail X-axis PNKE P level
Guide rail Y-axis Japan Panak P class
Main motor Gaoweiwei
Schneider Electric Appliances
Circuit protection phase failure protector/thermal overload protector
Rack Taiwan YYC
High precision level 8
Gear Taiwan YYC Grinding
Gearbox New Treasure
Numerical Control System Xinjie
PLC with USB import function
System Xinjie 17 bit absolute value servo motor
10 inch high-definition display screen
Switching power supply Mingwei
The saw blade is fast and unparalleled
Print automatic label printing
Sawing angle 45 ° -45 ° -90 °
45°---45°
The shortest distance is 635mm
The shortest CNC is 425mm
The longest distance is 4000mm
CNC up to 4500MM in length
45°----90°
The shortest distance is 1150MM
The longest distance is 4500MM
Maximum cutting of 100MM
Cutting width up to 450mm
Cut surface smoothness Ra0.8 smooth surface
Length accuracy+-0.1mm
Sectional flatness 0.05mm
Gas consumption 60L/MIN
Motor power 2.2KW * 3
Motor speed 2800 r/min
Gas source pressure 0.6-0.8Mpa
Saw blade specification 500 * 4.4 * 30 * 120Z
Power supply 380V 50HZ
Dimensions 5850 * 1600 * 1750
Weight 1780 Kg
