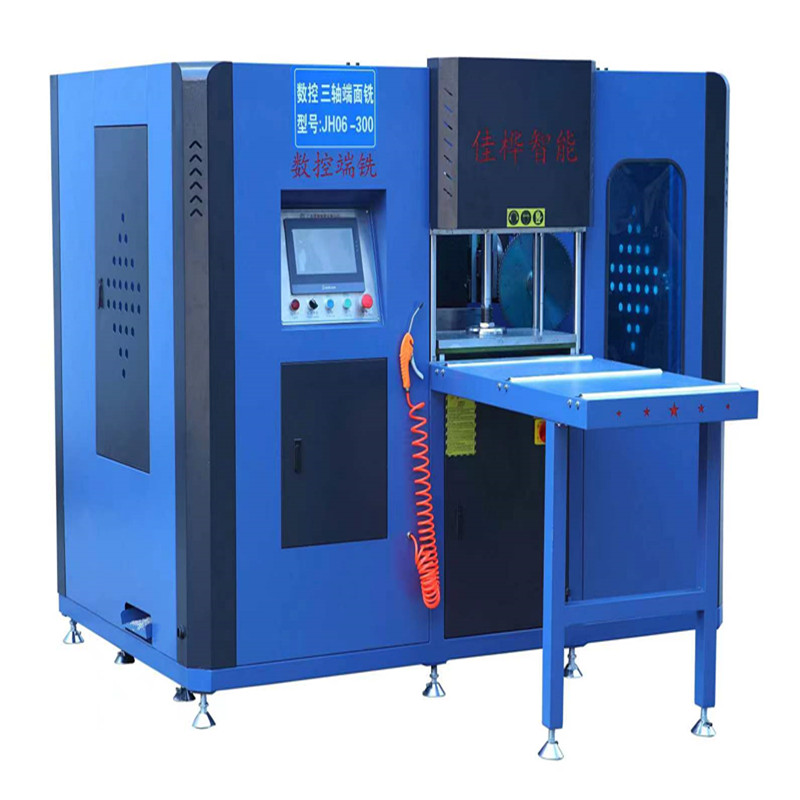

JH03-301A 3+1 CNC three-axis face milling (with rotation)

This machine is mainly used for end milling and cutting of aluminum curtain wall and profiles of aluminum doors and windows. 1. Can be multi-batch discharge processing, processing efficiency. 2. CNC servo control system, two groups of spindle motor processing at the same time, one-time milling, cutting shaping, no need to customize tools. 3. One group of spindle motor can be in the 90 degrees range of arbitrary swing, multi-angle processing. Four. Laser scanning device, can automatically identify and access the required software programs. 5. The cutting tool uses the carbide saw blade, the cutting speed is fast, the precision is high.

 Parameters: motor power 4KW

input voltage 380V/50HZ

 working pressure 0.6-0.8 mpa

rotating speed 2800ram

worktable width 500mm

maximum milling tenon ratio 210mm

saw blade specification 300 × 30mm

 machine tool size 2350×1500×1800mm

weight 730kg
