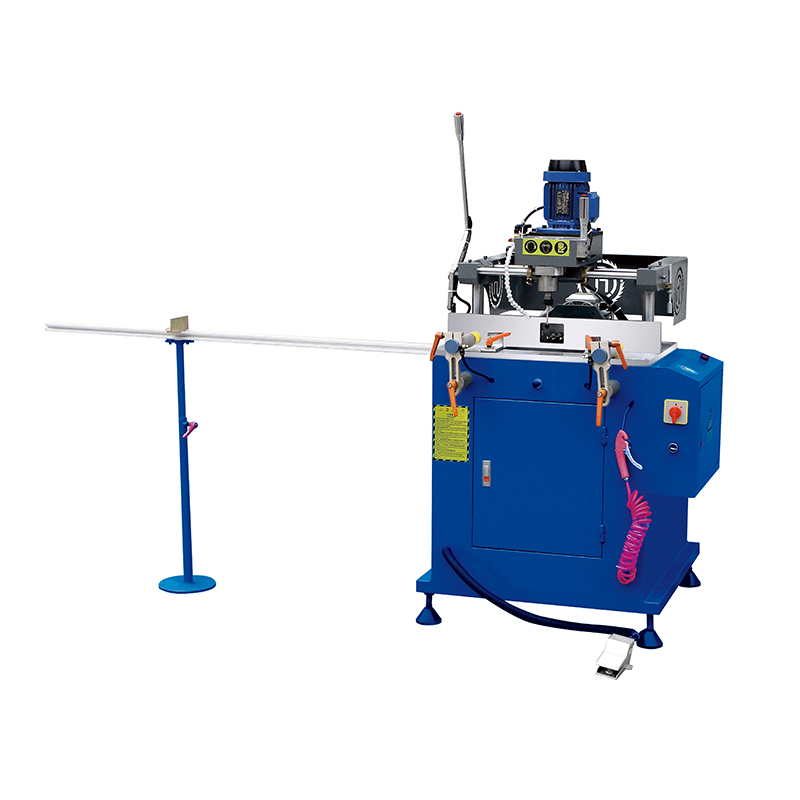

Product Introduction:
Used for milling installing hole-slot of transmission device
Composed of three-hole driller and copy router, pneumatic clamping and atomized cooling
One-pass clamping can complete two processes and realize horizontal drilling holes and vertical copy routing
Simple operation, reliable performance, hi-precision and hi-efficiency
Technical Parameters:
Power supply:380V 50Hz
Air pressure: 0.5-0.8 Mpa
Airconsumption: 30L /min
Input power: 2.6 kw
Overalldimension :1000×1300X1500mm
Weight: 300Kg
