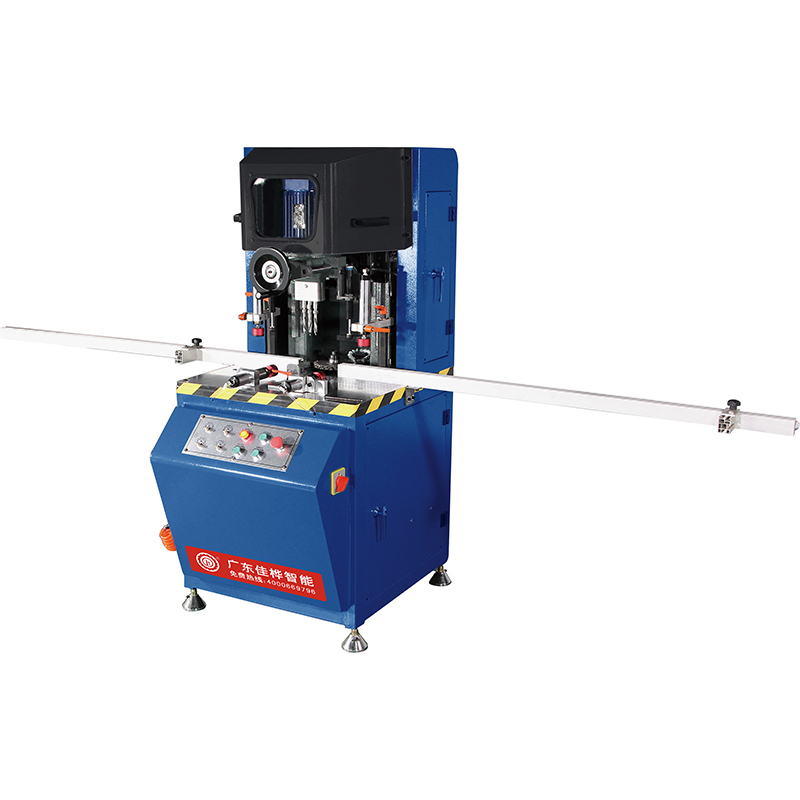

This machine is used for processing handle mounting holes and slots of doors and windows. It is suitable for open windows of broken bridges and seamless welded windows.
 Product characteristics
It realizes the function of drilling and milling as a whole, with high efficiency and simple operation.
Lock box keyhole forming only takes 7 seconds, without scribe positioning, both sides are equipped with positioning rulers, saving time and labor.
technical parameter
Working voltage: 380V-50HZ
Main motor power: 2.2KW + 1.5KW
Bit rotation: 1400R PM
Milling speed: 2800R PM
Working Pressure: 0.6-0.8Mpa
Machine tool weight: 260KG
Size: 700*860*1650mm
