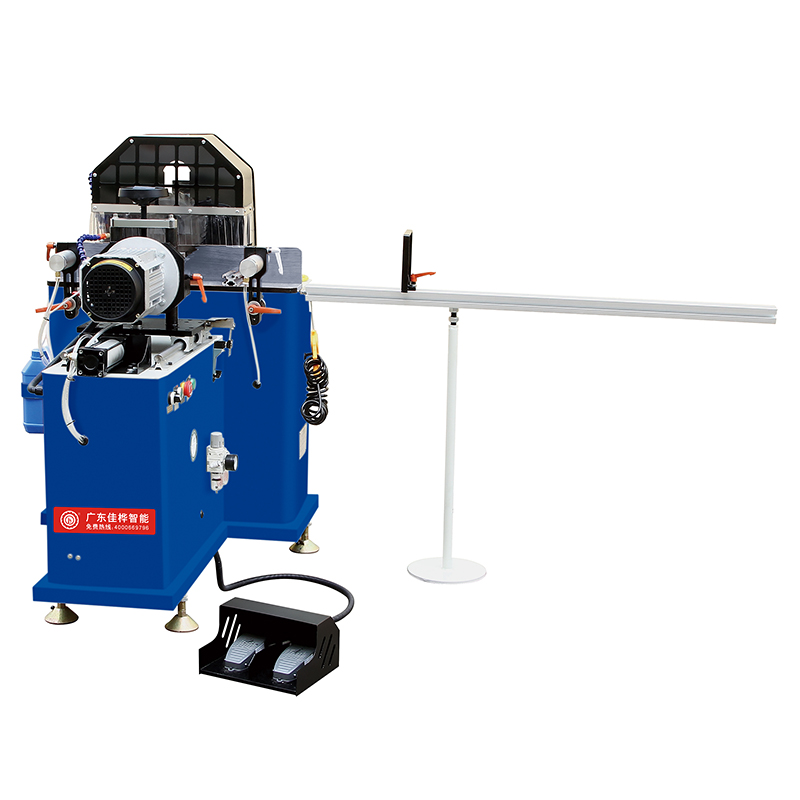

This machine is used for processing handle mounting holes and slots of doors and windows. It is suitable for open windows of broken bridges and seamless welded windows.
Product characteristics
It realizes the function of drilling and milling as a whole, with high efficiency and simple operation.
Lock box keyhole forming only takes 7 seconds, without scribe positioning, both sides are equipped with positioning rulers, saving time and labor.
technical parameter
Working voltage: 380V-50HZ
Main motor power:2X1.1 KW
Spindle diameter of milling cutter: Φ 32mm
Milling cutter diameter: Φ 200mm
Speed: 2840rpm
Working Pressure: 0.6-0.8Mpa
Machine tool weight: 350KG
Size: 1100*850*1400mm
