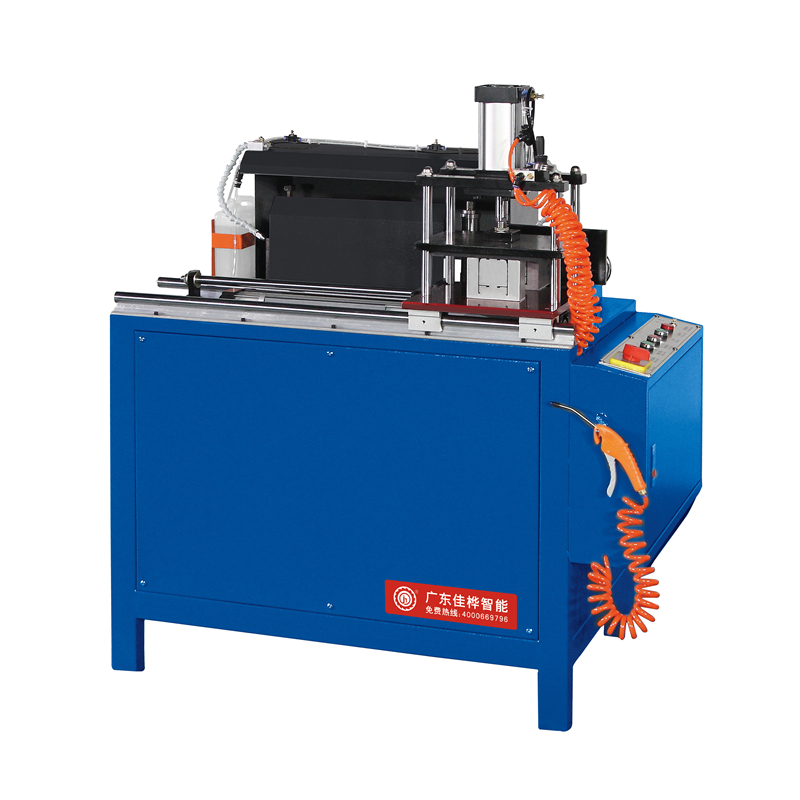

Aluminum profile arc press is a pure mechanical transmission of the end cutting equipment.equipment. It has great practicability, wide adaptability, small volume, light weigh, easy operation and satisfying processing effects. It adopts double-blade axis structure, and one of the blade axes is adjustable. It can process different shapes of end face tenons of various aluminum doors, windows, glass-reinforced plastic doors and windows and curtain walls with different cutting tools. Our company can make custom-made cutting tools as required.
Technical Parameters:
size of material table:320×280mm
Motor speed:1440r / min
Rotate speed:3200r / min
Overall dimension:1000×500×1200mm
Clamp-on material: 4~7条
Milling height:50mm
Motor power:4.4kw
Working voltage:380V
Weight:300kg
