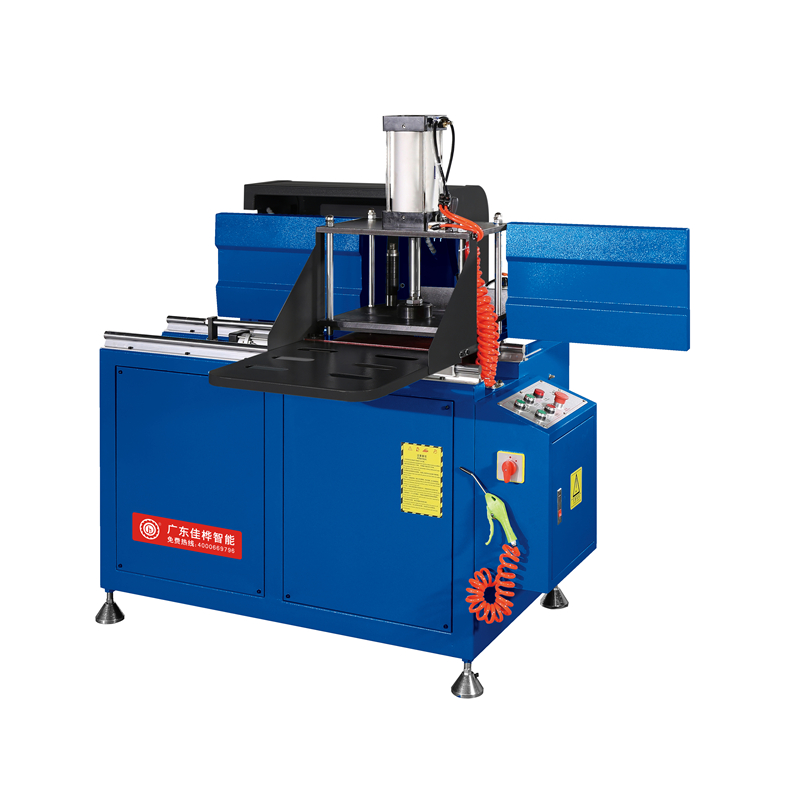

Introduction:his machine is professional for milling the irregular windows and doors and plastic profiles. New style with double motors and two cutter colums, one of the both cutters could be adjusted. Air-Hydraulic driving, separate speed control for each cutter, air-powered profils press system, automatic lubricating oil spurt with cooling fuction; Air & electric interaction shutter. Cutters could be available according to customers special profiles
Technical Parameters:
Size of material table:450*380mm
Rotate speed of the motor:1440r / min
Rotate speed of the main axis r/min:3300r / min
Overall dimension:1200*680*1400mm
Working air:0.5~0.8Mpa
Milling height:170mm
Motor power:4.4kw
Working voltage: 380V
weight: 500kg
Clamp-on material:5~12
