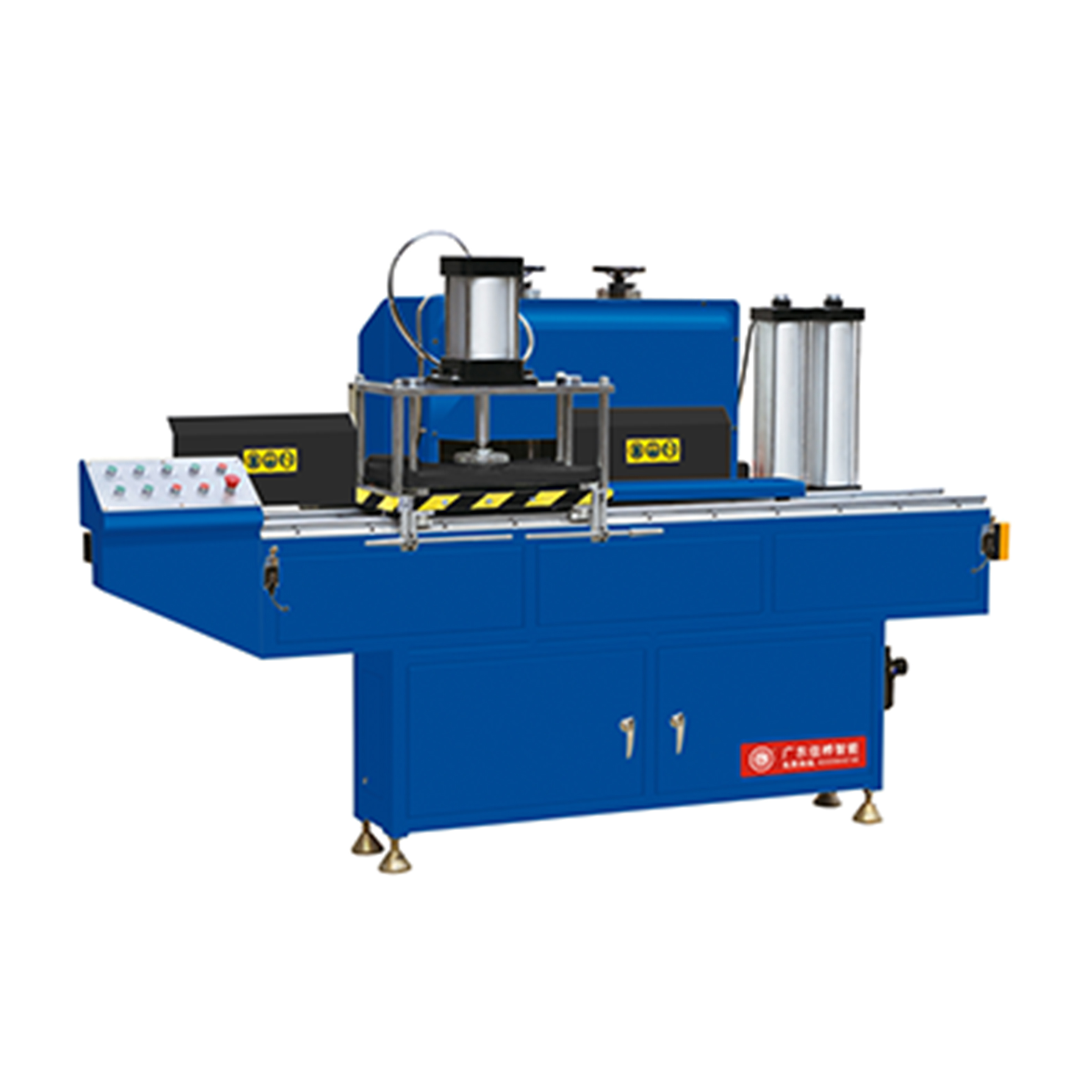

1. Product introduction:This machine is based on the Z6 six axis end milling tenon machine, the structure of the body of Z6, for the use of part of the user's needs, reduce the two cutter shaft to reduce costs and purchase costs, meet customer needs processing within a certain range.
Two. Product structure features:
Four 1 knife shaft structure, each of the knife shaft can be made before and after the adjustment of the lift.
2 the use of linear bearing guide system, so that the working platform is stable and flexible.
3 mixed gas, oil cylinder pushing, the table feed stable knife back quickly.
4 tool guide column of the active seat of the plating process, so that the knife seat lift is flexible and lightweight.
5 pneumatic atomizing cooling system, so that the milling effect is better, the tool is more durable.
6 the flange on the motor spindle and the cutter head with a unique screw connection, to ensure safety.
Three. Main technical parameters:
1 working voltage: 50Hz 380V
2 motor power: 6.6kw.
3 motor speed: 2800r/min.
4 material table area: 390 * 540mm.
5 Blade Size: 250 x 22 x 8 5 (6.7.8).
6 milling height: 150mm.
7 clamping profiles: 11 - 4.
8 working pressure: 0.60.8MPa.
9 weight of the whole machine: 680kg.
10 dimensions: 2000 x 960 x 1580mm.
