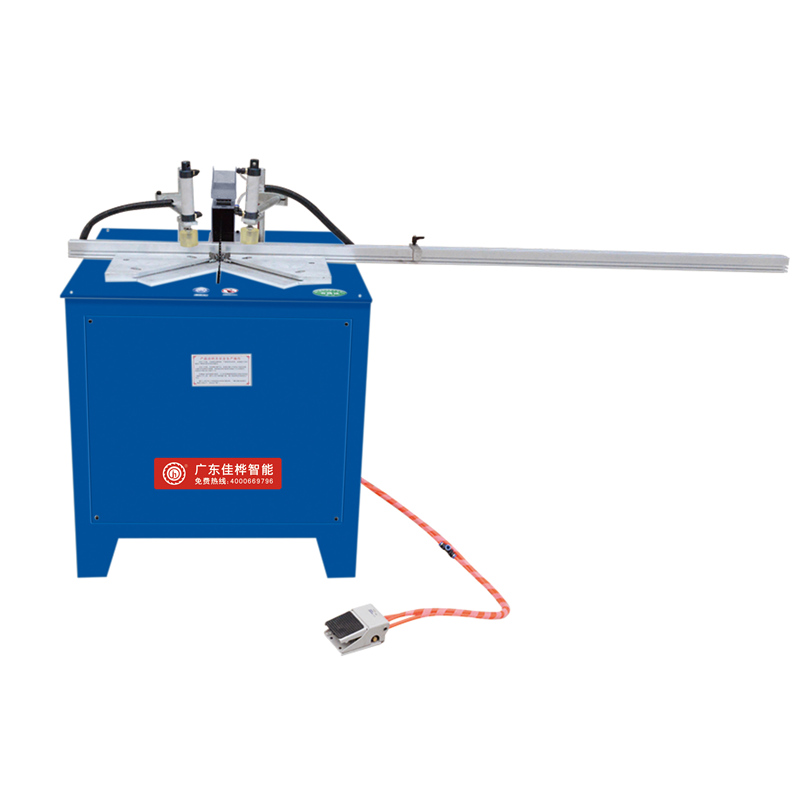

The development of a new type of aluminum profile precision high-speed cutting machine, imported pneumatic control system, processing cutting effect, cutting speed is stable, smooth. For Aluminum Alloy profiles, furniture, cabinets, boxes, crystal steel doors, shower door, wardrobe, office, photo frames, doors and windows and other decorative materials, cutting open 45 degrees 90 degrees, with a standard ruler, foot control, accurate positioning; pressing positioning mechanism; automatic discharging mechanism, easy to use, safe and fast. The working table is made of imported steel plate, the surface of the table is 100mm, the surface is smooth, the cutting precision and durability.
Technical parameters:
Working mode: pneumatic, electric.
Operation mode: semi-automatic.
Saw blade speed: adjustable.
Required air pressure: 4-8kg square.
Maximum cutting stroke: 180mm.
Maximum cutting thickness: 95mm.
Cutting angle: 45 degrees 90 degrees.
Voltage: 220V (380V).
Frequency: 50HZ.
Motor power: 1.5KW motor.
Motor: copper wire motor, two stage motor.
Saw speed: 5000 rpm.
