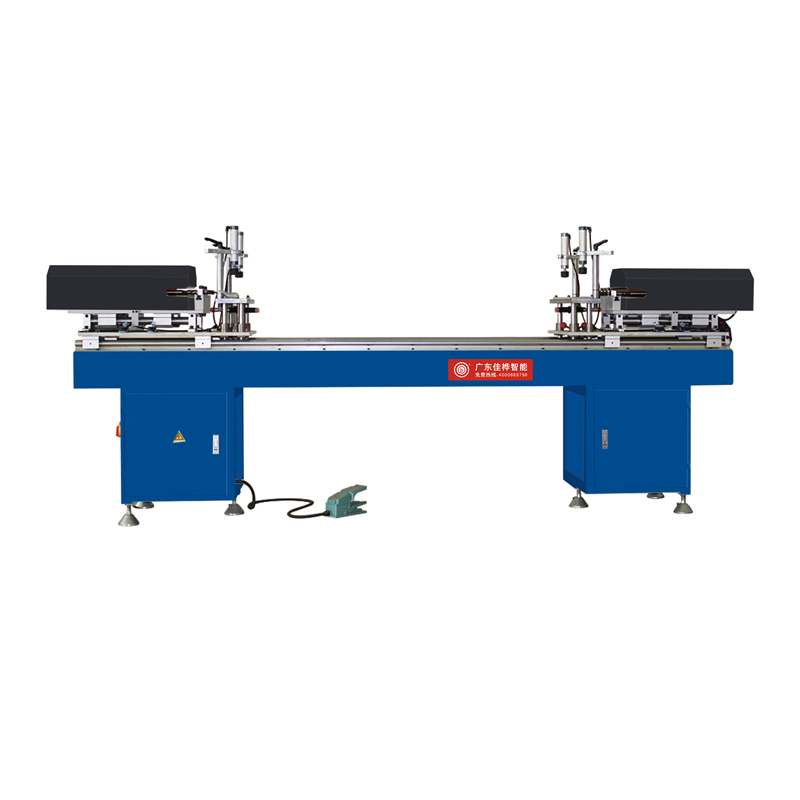

1, mainly used for processing friction hinge Aluminum Alloy and steel doors and windows material on the mounting hole, to ensure on both sides of the installation hole machining accuracy and improve work efficiency and provide a reliable guarantee.2, in the case of a clamping can be processed at the same time 8 holes, hole spacing and hole processing high and low position adjustment is simple and fast, the key parts of imported precision bearings, with high processing precision, stable performance, long life and other characteristics;
3, the machine is easy to operate, high degree of automation, is one of the main equipment to improve the efficiency of doors and windows manufacturers.
Parameters Technical (technical parameters)
Voltage voltage:                    50HZ 3P 380V
Power Input power:              2.2*2Kw
Compressure Air pressure:    0.6 ~ 0.8Mpa
Drilling Width Max maximum drilling and milling width: 18000mm
Diameter Drilling drilling and milling diameterPhi  ;   3- Phi 7mm
Of drilling Distance drilling and milling spacing:       15-220mm
Dimension: 3100*620*1200mm
Axis stroke Z Z axis travel:   3500mm
Power spindle spindle power: 5.5kw
